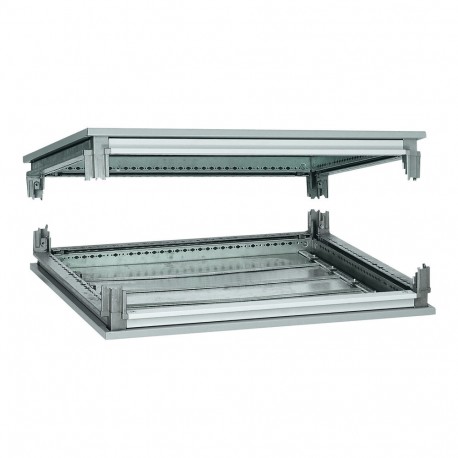

LEGRAND 020505 020505 LEGRAND XL3 BASE+ROOF ANCH725 PROF725 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020505 LEGRAND XL3 BASE+ROOF ANCH725 PROF725

020505

020505

LEGRAND

1 Pcs.

XL3 BASE+ROOF ANCH725 PROF725 Roof base for enclosure XL³ 4000 - depth 725 mm - width 725 mm Ceiling - base for XL³ 4000 cabinet - Prof. 725mm - L725mm

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand base and roof assembly provides structural integrity and environmental enclosure protection for modular industrial switchboards and control systems. Heavy-duty framing accessories like this are standard in factory automation floors to secure housing frames and maintain cabinet alignment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for outdoor set-up (EF005774): No
  • Height (EF000040): 150 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for bottom planking (EF009585): Yes
  • Suitable for roof planking (EF009584): Yes
  • With de-aeration (EF001161): No
  • Depth (EF000049): 725 mm
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 725 mm
  • RAL-number (EF000116): 7029
  • With cable entry (EF000325): Yes
  • Suitable for enclosure building depth (EF000327): 725 mm
  • Width (EF000008): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)156.00
  • Weight (g)33 000.00
Product characteristics
Enclosures and cable sleeves modular metal
Roof-base for enclosure
  • Fitted with cable entry plates
  • Take the structural uprights
  • Depth : 725 mm
  • Width external : 725 mm
  • Width usable : 600 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
