020500 LEGRAND XL3 4000 STUD STRUCTURE

020500

020500

LEGRAND

1 Pcs.

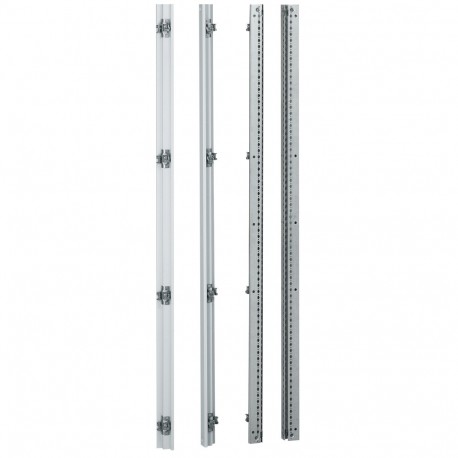

XL3 4000 STUD STRUCTURE Structural uprights (4) XL³ 4000 - fit onto roof base - Height 2000 mm Structural uprights (4) XL³ 4000 H2000mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

020500 LEGRAND XL3 4000 STUD STRUCTURE serves as a robust structural framework element for large-scale switchboard assemblies. Framework studs and uprights provide the fundamental skeleton required to mount heavy modular busbars, protective panels, and complex electrical distribution gear.

Please note that current pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2000 mm
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Suitable for enclosure building height (EF009583): 2000 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)39.00
  • Weight (g)19 826.00
Product characteristics
Enclosures and cable sleeves modular metal
Structural uprights
  • Set of 4 uprights
  • Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
