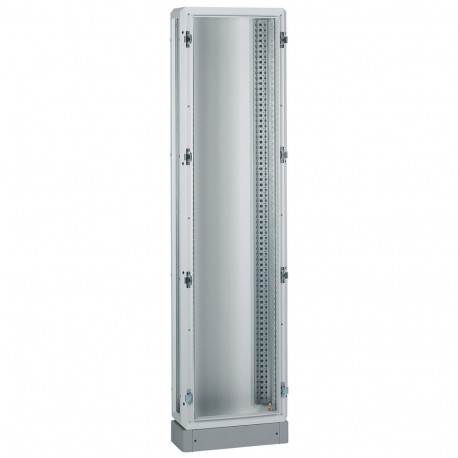

LEGRAND 020474 020474 LEGRAND XL3 800 C/L EXTERNAL 1950H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020474 LEGRAND XL3 800 C/L EXTERNAL 1950H

020474

020474

LEGRAND

1 Pcs.

XL3 800 C/L EXTERNAL 1950H Cell external side XL3 800 - for cabinet IP 55 ref. 204 59 - High. 1995 mm XL³ 800 external side cell for IP55 cabinet ref. 0 204 59 H1995mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020474 LEGRAND XL3 800 C/L EXTERNAL 1950H is a structural enclosure accessory used to enclose panel sides and build modular electrical distribution arrays. It provides a clean external finish while protecting internal switchgear components from external contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1950 mm
  • Material (EF002169): Metal
  • Depth (EF000049): 225 mm
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 500 mm
  • RAL-number (EF000116): 7035
  • Width (EF000008): 500 mm
  • Suitable for enclosure building depth (EF000327): 225 mm
  • Suitable for enclosure building height (EF009583): 1950 mm

More info

▲

Product features

Cells external side - Are associated left or right - Supplied without side panels with a plinth of 100 mm height - overall Height: 1995 mm - Height to caps cubrebornas: 1800 mm - outer Width: 500 mm - working Width: 400 mm - depth: 225 mm

General characteristics

XL3 800 - cabinets IP 55 - IP 55 with door IK 08 - Cell metal - Suitable for devices up to 630 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Coupling horizontal - To outside industrial and urban sheltered
