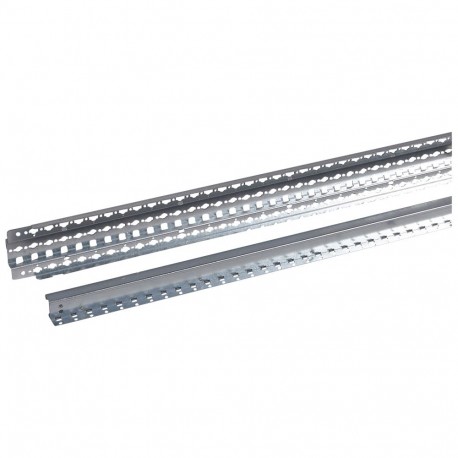

LEGRAND 020427 020427 LEGRAND XL3 CELL SIDE INTERN H1250 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020427 LEGRAND XL3 CELL SIDE INTERN H1250

020427

020427

LEGRAND

1 Pcs.

XL3 CELL SIDE INTERN H1250 Cell lateral internal XL3 800 - width. 910 mm - to box ref. 204 07/57 XL³ 800 internal side cell for enclosure ref. 0 204 07/57 - L910mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020427 LEGRAND XL3 CELL SIDE INTERN H1250 functions as a cable trough designed to route and segregate internal wiring channels within modular distribution enclosures. Cable management troughs maintain tidy conductor paths and prevent interference between power and control lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1250 mm
  • Model (EF000010): Cable trough
  • Material (EF002169): Metal
  • Depth (EF000049): 230 mm
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 460 mm
  • RAL-number (EF000116): 7035
  • Width (EF000008): 460 mm
  • Suitable for enclosure building depth (EF000327): 230 mm
  • Suitable for enclosure building height (EF009583): 1250 mm

More info

▲

Product features

Cells lateral internal game cell lateral internal - Sets that comprise the stud and mounting accessories - Allow you to perform a cell side usable width: 250 mm, left or right on the inside of the boxes 950 mm width - For cabinet height 1250 or 1295 mm, ref. 0 204 07/57

General characteristics

XL3 800 - distribution boxes-IP 55 - IP 55 with door IK 08 - Cell metal - Suitable for devices up to 630 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 - Coupling horizontal - To outside industrial and urban sheltered
