View larger
Images are for illustrative purposes only. Please refer to data sheet for details

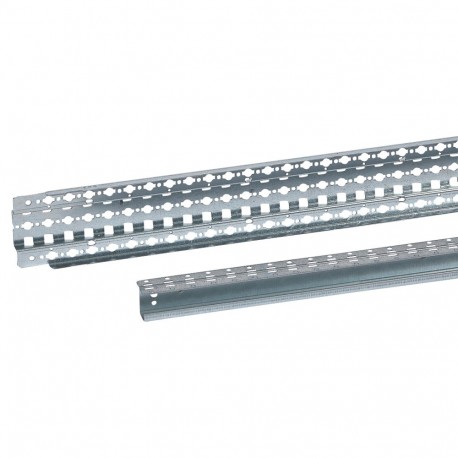

020426 LEGRAND XL3 CELL SIDE INTERN H1050
020426
020426
LEGRAND
1 Pcs.
XL3 CELL SIDE INTERN H1050
Cell lateral internal XL3 800 - width. 910 mm - to box ref. 204 06/56
XL³ 800 internal side cell for enclosure ref. 0 204 06/56 - L910mm
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Cells lateral internal game cell lateral internal - Sets that comprise the stud and mounting accessories - Allow you to perform a cell side usable width: 250 mm, left or right on the inside of the boxes 950 mm width - For cabinet height 1050 or 1095 mm, cat. 0 204 06/56General characteristics
XL3 800 - distribution boxes-IP 55 - IP 55 with door IK 08 - Cell metal - Suitable for devices up to 630 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 - Coupling horizontal - To outside industrial and urban sheltered| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1050 mm |
| Model (EF000010) | Cable trough |
| Material (EF002169) | Metal |
| Depth (EF000049) | 230 mm |
| Colour (EF000007) | Grey |
| Suitable for enclosure building width (EF000326) | 460 mm |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 460 mm |
| Suitable for enclosure building depth (EF000327) | 230 mm |
| Suitable for enclosure building height (EF009583) | 1050 mm |
