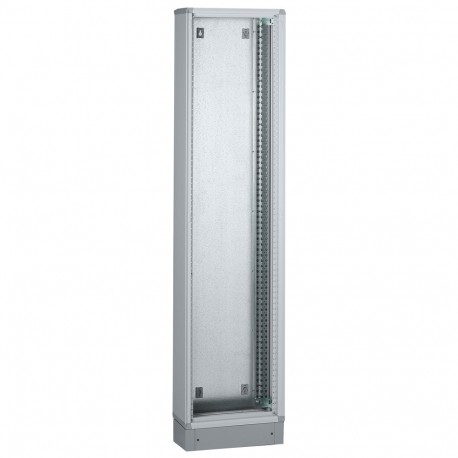

LEGRAND 020424 020424 LEGRAND XL3 CELL LATERAL EXTERN H1950 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020424 LEGRAND XL3 CELL LATERAL EXTERN H1950

020424

020424

LEGRAND

1 Pcs.

XL3 CELL LATERAL EXTERN H1950 Cell external side XL3 800 - for wardrobe ref. 204 09 XL³ 800 external side cell for cabinet ref. 0 204 09

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020424 (020424 LEGRAND XL3 CELL LATERAL EXTERN H1950) external lateral cable trough provides a dedicated vertical pathway for managing and separating control wiring outside the main enclosure frame. Cable management accessories help maintain neatness and protect conductors in commercial and industrial electrical assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1950 mm
  • Model (EF000010): Cable trough
  • Material (EF002169): Metal
  • Depth (EF000049): 230 mm
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 460 mm
  • RAL-number (EF000116): 7035
  • Width (EF000008): 460 mm
  • Suitable for enclosure building depth (EF000327): 230 mm
  • Suitable for enclosure building height (EF009583): 1950 mm

More info

▲

Product features

Cells external lateral Cell side - Are associated with right or left - Are delivered with a plinth of 100 mm height and accessories association - total Height: 1950 mm - Height to caps cubrebornas: 1800 mm - outer Width: 460 mm - Width: 400 mm - depth: 230 mm

General characteristics

XL3 800 - cabinets - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - Facing metal. Suitable for appliances up to 800 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)
