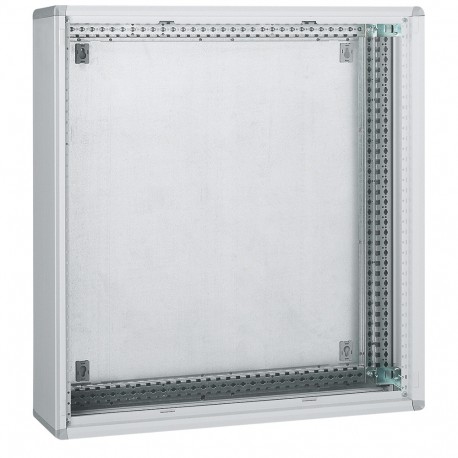

LEGRAND 020406 020406 LEGRAND XL3 METAL CASE L910 H1050 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020406 LEGRAND XL3 METAL CASE L910 H1050

020406

020406

LEGRAND

1 Pcs.

XL3 METAL CASE L910 H1050 Distribution box XL3 800 - 1050x910x230 mm

Automation > Enclosure/switchgear cabinet (empty)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a 020406 Legrand XL3 metal case L910 H1050, this enclosure serves as a protective metallic shell for mounting modular terminal blocks and control apparatus. Wall and panel-mounted enclosures are a fundamental requirement in electrical engineering, safeguarding internal components from environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wall built-in (EF007536): No
  • Height (EF000040): 1050 mm
  • Degree of protection (IP) (EF005474): IP43
  • Number of doors (EF000122): 1
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Number of locks (EF000123): 2
  • Pitched roof (EF009278): No
  • RAL-number (EF000116): 7035
  • With mounting plate (EF000118): No
  • With ventilation door (EF006279): No
  • With glazed door (EF001089): Yes
  • With rear door (EF007381): No
  • EMC-version (EF001062): No
  • Mounting plate depth-adjustable (EF006054): No
  • Impact strength (EF004293): IK08

More info

▲

Product features

Boxes equippable Width 910 mm - Can be integrated a cell side 36 or 24 modules (if cell lateral internal) - total Height: 1050 mm - Height to caps cubrebornas: 1000 mm - outer Width: 910 mm - Width: 850 mm - depth: 230 mm

General characteristics

XL3 800 - distribution boxes and switchgear side. - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - to- Cell metal - Suitable for appliances up to 800 (700 if IP top 30) - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Supplied flat with studs functional set in the background, plate cable entry cut-out accessories and of association (horizontal and vertical)
