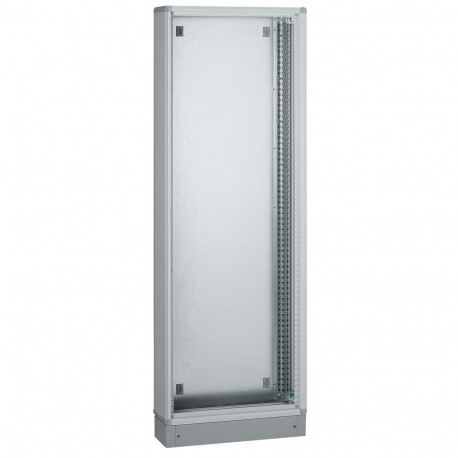

020404 LEGRAND XL3 CABINET METAL L660 H1950
020404
020404
LEGRAND
1 Pcs.
XL3 CABINET METAL L660 H1950
Distribution cabinet XL3 800 - 1950x660x230 mm
Automation > Enclosure/switchgear cabinet (empty)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Cabinets can be equipped - Including socle, height: 100 mm Width 660 mm 24 modules per row - total Height: 1950 mm - Height to caps cubrebornas: 1800 mm - outer Width: 660 mm - useful Width: 600 mm - depth: 230 mmGeneral characteristics
XL3 800 - cabinets - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - Facing metal. Suitable for appliances up to 800 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)| Feature Name | Feature Value |
|---|---|
| Suitable for wall built-in (EF007536) | No |
| Height (EF000040) | 1950 mm |
| Degree of protection (IP) (EF005474) | IP43 |
| Number of doors (EF000122) | 1 |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Material quality (EF001257) | Other |
| Number of locks (EF000123) | 1 |
| Pitched roof (EF009278) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| RAL-number (EF000116) | 7035 |
| With mounting plate (EF000118) | No |
| With ventilation door (EF006279) | No |
| With glazed door (EF001089) | Yes |
| With rear door (EF007381) | No |
| EMC-version (EF001062) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Impact strength (EF004293) | IK08 |
| Pole fastening (EF009582) | No |
| Depth (EF000049) | 230 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 660 mm |
