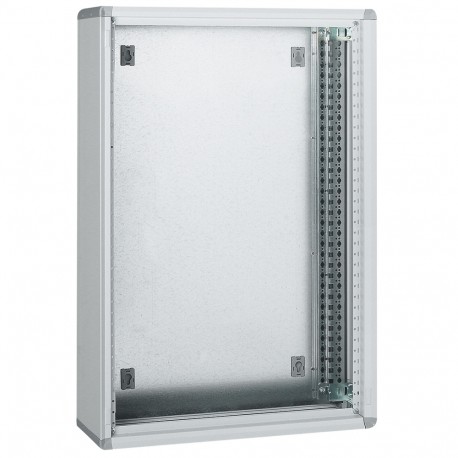

LEGRAND 020401 020401 LEGRAND XL3 METAL CASE L660 H1050 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020401 LEGRAND XL3 METAL CASE L660 H1050

020401

020401

LEGRAND

1 Pcs.

XL3 METAL CASE L660 H1050 Distribution box XL3 800 - 1050x660x230 mm

Automation > Enclosure/switchgear cabinet (empty)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for secure indoor electrical distribution, the 020401 LEGRAND XL3 METAL CASE L660 H1050 is a durable metal enclosure housing used to organize modular control gear and protective devices. Such cases are regularly specified in commercial buildings and industrial infrastructure to safeguard centralized breaker arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wall built-in (EF007536): No
  • Height (EF000040): 1050 mm
  • Degree of protection (IP) (EF005474): IP43
  • Number of doors (EF000122): 1
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Number of locks (EF000123): 2
  • Pitched roof (EF009278): No
  • RAL-number (EF000116): 7035
  • With mounting plate (EF000118): No
  • With ventilation door (EF006279): No
  • With glazed door (EF001089): Yes
  • With rear door (EF007381): No
  • EMC-version (EF001062): No
  • Mounting plate depth-adjustable (EF006054): No
  • Impact strength (EF004293): IK08

More info

▲

Product features

Boxes equippable Width 660 mm 24 modules per row - total Height: 1050 mm - Height to caps cubrebornas: 1000 mm - outer Width: 660 mm - useful Width: 600 mm - depth: 230 mm

General characteristics

XL3 800 - distribution boxes and switchgear side. - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - to- Cell metal - Suitable for appliances up to 800 (700 if IP top 30) - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Supplied flat with studs functional set in the background, plate cable entry cut-out accessories and of association (horizontal and vertical)
