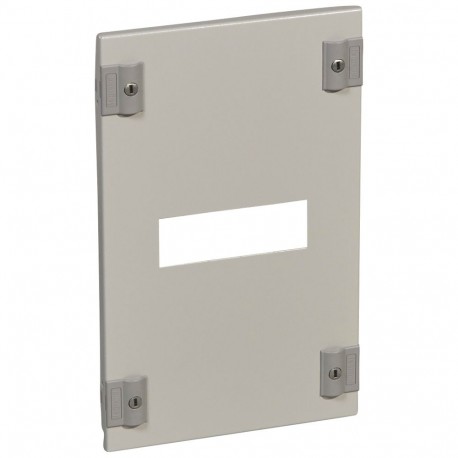

LEGRAND 020327 020327 LEGRAND XL3 PLATE DPX3 250 C/LATER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020327 LEGRAND XL3 PLATE DPX3 250 C/LATER

020327

020327

LEGRAND

1 Pcs.

XL3 PLATE DPX3 250 C/LATER Cover cubrebornas metal XL3 400 - for 1 DPX3 250 in cell side - horizontal Fuse base, 25A, 500 V, DII/E27, fitted screw

Automation > Front plate (switchgear cabinet)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand mounting plate (020327) supports the lateral integration of DPX3 250 circuit breakers within modular industrial enclosures, maintaining structural alignment for power distribution hardware. Factory-engineered mounting plates streamline switchboard installation processes.

Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 310 mm
  • Width (EF000008): 250 mm
  • Suitable for enclosure building height (EF009583): 1900 mm

More info

▲

Product features

Caps cubrebornas for equipment mounted on a plate - A quarter turn prehensile and sealable For DPX3 and DPX-IS 250 - Metal - Height: 400 mm

General characteristics

XL3 400 equipment for mounting of the apparatus in cells side - Fastening on profile with caps cubrebornas for modular apparatuses up to 160 A - Fasteners on mounting plates with lids cubrebornas for DPX 125, 160, 250 ER and 630
