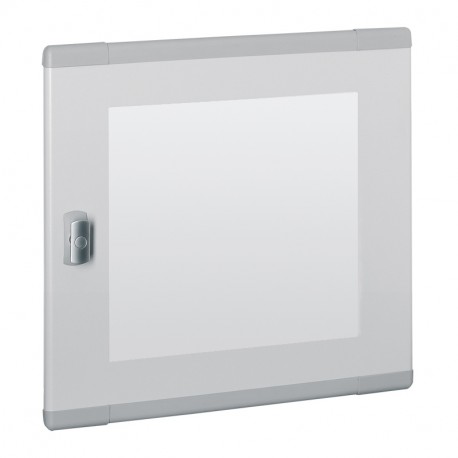

LEGRAND 020282 020282 LEGRAND XL3 DOOR EXTRPL TRANSP 450H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020282 LEGRAND XL3 DOOR EXTRPL TRANSP 450H

020282

020282

LEGRAND

1 Pcs.

XL3 DOOR EXTRPL TRANSP 450H Door flat transparent XL3 160 - box alt. 450 mm Fuse enclosure, 1xdisconnector 3p NH3 630A, HxWxD=750x375x225mm

Automation > Door/operating panel (switchgear cabinet)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 compartment door is designed to restrict unauthorized access and protect internal modular gear housed inside electrical switchboards and control enclosures. Glazed compartment doors provide a clear line of sight to internal status indicators and measuring instruments while safeguarding equipment integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 575 mm
  • Model (EF000010): Compartment door
  • Degree of protection (IP) (EF005474): IP40
  • Version as glazed door (EF006966): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Lacquered
  • Depth (EF000049): 25 mm
  • Width (EF000008): 450 mm
  • EMC-version (EF001062): No

More info

▲

Product features

Doors - Supplied with grip ram interchangeable - 2 locking points top and bottom (for doors with a height from 900 to 1050) Flat - Away lid cubrebornas/metal door: 38 mm - crystal: 34 mm - Not adapted to the Vistop grip front - To-box and cabinets, height 450 mm - Not adapted to the Vistop ergonomic front handle - With glass

General characteristics

XL3 160 doors and accessories
