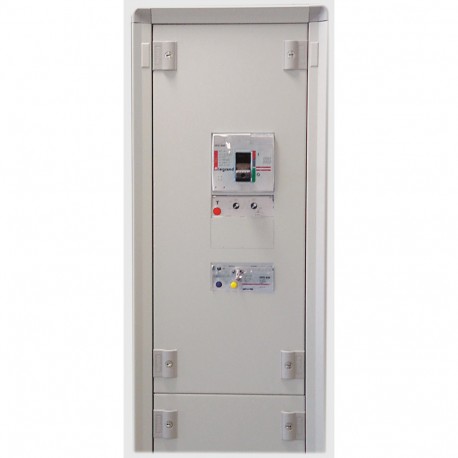

LEGRAND 020229 020229 LEGRAND XL3 PLATE DPX250/630 V. CENTER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020229 LEGRAND XL3 PLATE DPX250/630 V. CENTER

020229

020229

LEGRAND

1 Pcs.

XL3 PLATE DPX250/630 V. CENTER Plate XL3 400 cable panel - for DPX 250/630 (400) - dif.- vertical XL³ 400 cable cell plate for DPX³ 250/630 (400A) diff. -Vertical

Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand equipment mounting plate secures modular circuit breakers and distribution gear within specialized enclosures, maintaining proper spacing and structural integrity across the assembly. These plates support organized component layout in commercial electrical architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 800 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Untreated
  • Width (EF000008): 515 mm

More info

▲

Product features

Plates for equipment fixed version connection the previous Computer - in vertical position - Are fixed in the stiles functional - For DPX 250 or DPX3 630, with differential bottom - DPX3 630 limited to 400 To

General characteristics

XL3 400 equipment for mounting of the apparatus in cells side - Fastening on profile with caps cubrebornas for modular apparatuses up to 160 A - Fasteners on mounting plates with lids cubrebornas for DPX 125, 160, 250 ER and 630
