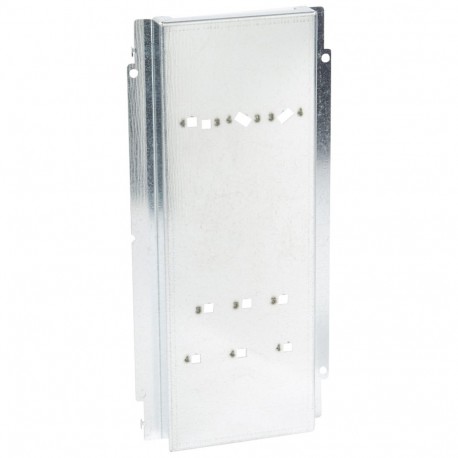

LEGRAND 020228 020228 LEGRAND XL3 PLATE DPX250/630 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020228 LEGRAND XL3 PLATE DPX250/630

020228

020228

LEGRAND

1 Pcs.

XL3 PLATE DPX250/630 Plate XL3 400 cable panel - for DPX 250/630 (400) -Vertical XL³ 400 cable cell plate for DPX³ 250/630 (400A) - Vertical

Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

020228 LEGRAND XL3 PLATE DPX250/630 is engineered to mount circuit breakers and associated power distribution equipment securely within modular electrical enclosures. This perforated steel plate provides pre-aligned fixing points to simplify the installation of heavy protection devices.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Untreated
  • Width (EF000008): 515 mm

More info

▲

Product features

Plates for equipment fixed version connection the previous Computer - in vertical position - Are fixed in the stiles functional - For DPX 250 or DPX3 630 - DPX3 630 limited to 400 To

General characteristics

XL3 400 equipment for mounting of the apparatus in cells side - Fastening on profile with caps cubrebornas for modular apparatuses up to 160 A - Fasteners on mounting plates with lids cubrebornas for DPX 125, 160, 250 ER and 630
