View larger
Images are for illustrative purposes only. Please refer to data sheet for details

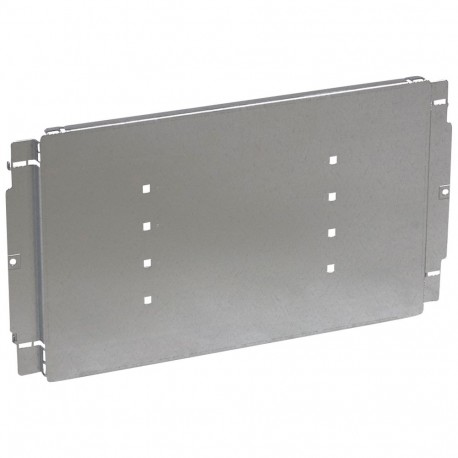

020225 LEGRAND XL3 PLATE DPX630+DIF HORZ.
020225
020225
LEGRAND
1 Pcs.
XL3 PLATE DPX630+DIF HORZ.
Plate XL3 400 - for 1 DPX3630 (400 A) with or without dif., fixed - horizontal
XL³ 400 plate for 1 DPX³ 630 (400A) with or without diff. , Fixed - Horizontal
Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Plates for equipment, fixed version previous connection - Possibility to install a profile symmetrical complementary - both Are fixed in the stiles functional Teams in a horizontal position - For 1 DPX3 630 with or without differential - DPX3 630 limited to 400 ToGeneral characteristics
XL3 400 equipment for mounting DPX3 630 on mounting plate| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 515 mm |
