View larger
Images are for illustrative purposes only. Please refer to data sheet for details

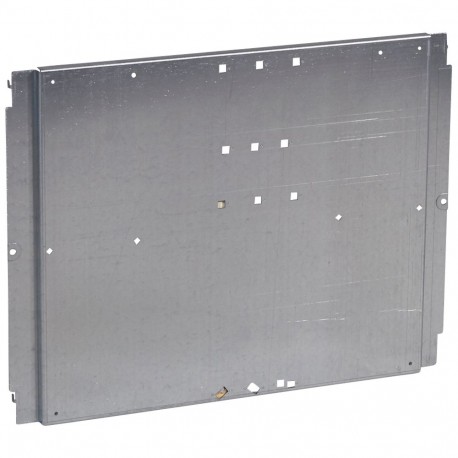

020223 LEGRAND XL3 DPX250/400+BDA-CENTERED
020223
020223
LEGRAND
1 Pcs.
XL3 DPX250/400+BDA-CENTERED
Plate XL3 400 - for 1 DPX-IS 250/630 (400) - dif., fixed - vertical-centered
XL³ 400 plate for 1 DPX-IS 250/630 (400A) diff. , Fixed - Vertical Centering
Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Plates for equipment, fixed version previous connection - Possibility to install a profile symmetrical complementary - both Are fixed in the stiles functional Teams in an upright position - For 1 DPX 250 or DPX3 630 with the differential centered in position - DPX3 630 limited to 400 ToGeneral characteristics
XL3 400 equipment for mounting DPX 250 and DPX3 630 on mounting plate| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 515 mm |
