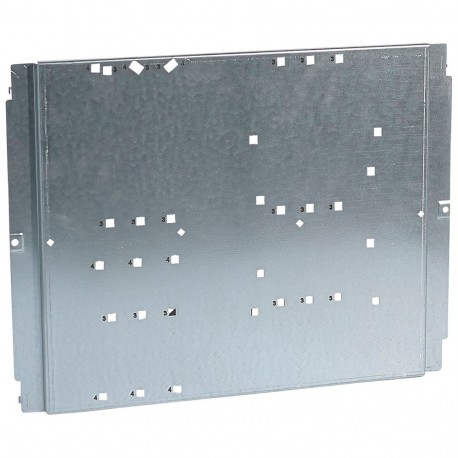

020222 LEGRAND XL3 PLATE DPX250/630+DIF
020222
020222
LEGRAND
1 Pcs.
XL3 PLATE DPX250/630+DIF
Mounting plate XL3 400 - for 1 or 2 DPX 250 fixed differential - vertical
XL³ 400 Mounting Plate for 1 or 2 DPX³ 250 Fixed with Differential - Vertical
Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Plates for equipment, fixed version previous connection - Possibility to install a profile symmetrical complementary - both Are fixed in the stiles functional Teams in an upright position - For 1 or 2 DPX 250 differential or 1 DPX3 630 and 1 DPX 250 differential or 1 DPX3 630 only or 1 DPX 250 differential with 1 dealer ref. 0 374 00 - DPX3 630 limited to 400 ToGeneral characteristics
XL3 400 equipment for mounting DPX 250 and DPX3 630 on mounting plate| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 515 mm |
