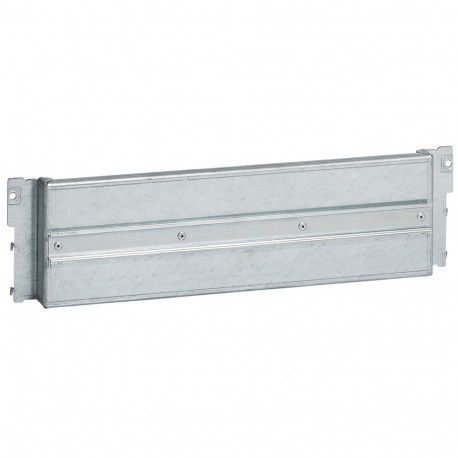

LEGRAND 020211 020211 LEGRAND XL3 PLATE DPX3 160/250 VERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020211 LEGRAND XL3 PLATE DPX3 160/250 VERT

020211

020211

LEGRAND

1 Pcs.

XL3 PLATE DPX3 160/250 VERT Plate XL3 400-For DPX3 or DPX-IS 250 fixed previous connection - Vertical XL³ 400 plate for DPX³ or DPX-IS 250 fixed anterior connection - Vertical

Automation > Mounting plate for distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020211 Legrand xl3 plate dpx3 160/250 vert acts as a specialized adapter plate meant for mounting molded case circuit breakers and modular protection devices securely within switchboards. Panel builders utilize these plates to maintain alignment and safety clearances inside electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Untreated
  • Width (EF000008): 515 mm

More info

▲

Product features

Plates for equipment fixed version above connection - fixing in the studs functional vertical Mounting - If mounting is performed in the upper part of the cabinet to use a compulsory cover cubrebornas of 300 mm - Plate equipped with a profile symmetrical to the mounting DPX3 160 and 250, and an adapter attachment ref. 4 210 68/69/71/72 or with the plate to the inverter sources manual ref. 4 210 58 - Allows the coexistence of various equipment and the assembly of modular apparatuses with the elevator ref. 0 262 99 - If the mounting is at the top of the cabinet to use a compulsory cover cubrebornas of 300 mm

General characteristics

XL3 400 equipment - for mounting DPX3 160, DPX3 250 and DPX-IS 250 mounting plate
