View larger
Images are for illustrative purposes only. Please refer to data sheet for details

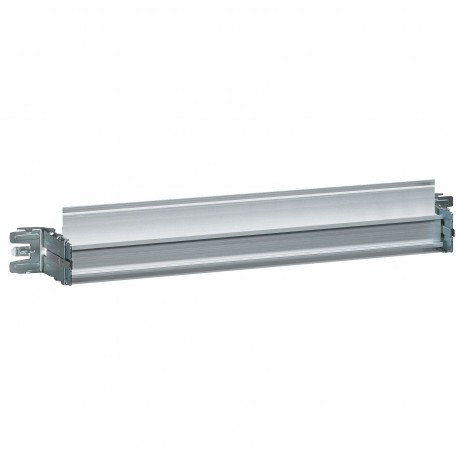

020206 LEGRAND XL3 SOP.+RAIL 2 PROF. 24 MOD
020206
020206
LEGRAND
1 Pcs.
XL3 SOP.+RAIL 2 PROF. 24 MOD
Profile aluminum 2-position XL3 400 - for DPX3 160/250/DPX-IS 250
2-position aluminum profile XL³ 400 for DPX³ 160/250/DPX-IS 250
Automation > Mounting rail
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Profiles symmetrical - Set composed by a profile symmetric, and 2 mounting brackets - Support brackets-wiring ref. 0 200 94 aluminum profile symmetric 2 positions - For DPX3 160/250 and DPX-IS 250 via mounting plates specific - Supports the delivery of row HX3 125 a - TO Be fixed in the stiles functional in XL3 400 only - Supports the clamp guide of the wiring ref. 4 052 25General characteristics
XL3 400 equipment for mounting modular - Vistop up to 160 A, DPX3 160, DPX3 250 and DPX-IS 250 on rail symmetrical| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 61.2 mm |
| Model (EF000010) | G-rail |
| Material thickness (EF000386) | 1.3 mm |
| Material (EF002169) | Aluminium |
| Punch shape (EF001457) | None |
| Surface protection (EF000139) | Untreated |
| Length (EF001438) | 433.5 mm |
