View larger
Images are for illustrative purposes only. Please refer to data sheet for details

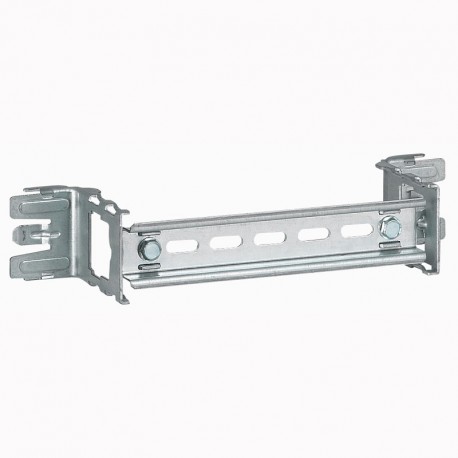

020203 LEGRAND XL3 SUPPORT RAIL LENGTH 250
020203
020203
LEGRAND
1 Pcs.
XL3 SUPPORT RAIL LENGTH 250
Profile XL3 400 cable panel - for modular devices and Vistop up to 160 A
XL³ 400 cable cell profile for modular and Vistop devices up to 160A
Automation > Mounting rail
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Profile symmetrical for modular devices and Vistop up to 160 A - Set consisting of a profile symmetrical and of 2 mounting brackets - fixing on the studs functional - Supports clamps wiring ref. 0 200 94 - Capacity 9 modulesGeneral characteristics
XL3 400 equipment for mounting of the apparatus in cells side - Fastening on profile with caps cubrebornas for modular apparatuses up to 160 A - Fasteners on mounting plates with lids cubrebornas for DPX 125, 160, 250 ER and 630| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 35 mm |
| Model (EF000010) | DIN rail (top hat rail) 15 mm |
| Material thickness (EF000386) | 15 mm |
| Material (EF002169) | Aluminium |
| Punch shape (EF001457) | None |
| Surface protection (EF000139) | Untreated |
| Length (EF001438) | 600 mm |
