View larger
Images are for illustrative purposes only. Please refer to data sheet for details

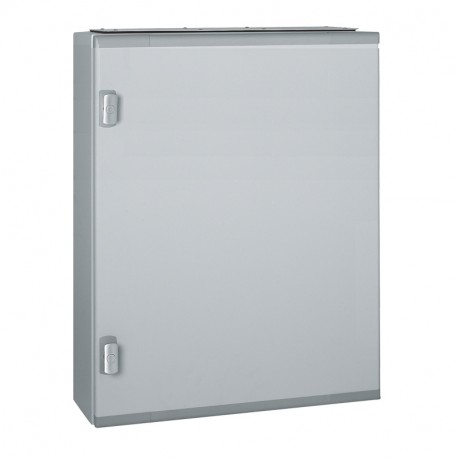

020183 LEGRAND XL3 BOX IP55 MONOBLOCK 600H
020183
020183
LEGRAND
1 Pcs.
XL3 BOX IP55 MONOBLOCK 600H
Box of distribution XL3 400 IP 55 - IK 08 - metal monoblock - Alt. 715
XL³ 400 distribution box - IP55- IK08 - metallic monobloc H715mm
Automation > Enclosure/switchgear cabinet (empty)
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Boxes for equip - Height: 715 mm - Height to caps cubrebornas: 600 mm - external Width: 655 mm - useful Width: 515 mm - depth: 215 mm - Distance cover cubrebornas/door: 48General characteristics
XL3 400 - distribution boxes-IP 55 - IP 55 - IK 08 - Envelope-metal monoblock - Includes door blind reversible equipped with a grip of ram interchangeable (to be ordered separately) and locking legs mural: - Capacity: 24 modules per row - Chassis-removable - fire Resistance according to IEC 60695-2-11: 750 °C to be installed in the ERP - RAL 7035 - Suitable for devices up to 250 A - For external industrial and urban sheltered| Feature Name | Feature Value |
|---|---|
| Suitable for wall built-in (EF007536) | No |
| Height (EF000040) | 600 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Number of doors (EF000122) | 1 |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Material quality (EF001257) | Other |
| Number of locks (EF000123) | 2 |
| Pitched roof (EF009278) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| RAL-number (EF000116) | 7035 |
| With mounting plate (EF000118) | No |
| With ventilation door (EF006279) | No |
| With glazed door (EF001089) | Yes |
| With rear door (EF007381) | No |
| EMC-version (EF001062) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Impact strength (EF004293) | IK08 |
| Pole fastening (EF009582) | No |
| Depth (EF000049) | 215 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 655 mm |
