> LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS > 020182

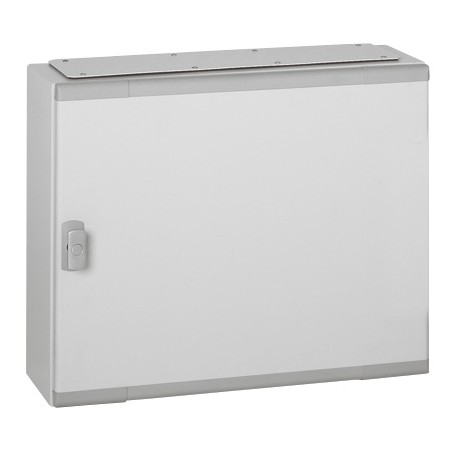

LEGRAND 020182 020182 LEGRAND XL3 BOX IP55 MONOBLOCK 400H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020182 LEGRAND XL3 BOX IP55 MONOBLOCK 400H

020182

020182

LEGRAND

1 Pcs.

XL3 BOX IP55 MONOBLOCK 400H Box of distribution XL3 400 IP 55 - IK 08 - metal monoblock - Alt. 515 XL³ 400 distribution box - IP55- IK08 - metallic monobloc H515mm

Automation > Enclosure/switchgear cabinet (empty)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020182 XL3 box monoblock enclosure is a compact wall-mounted distribution housing built to house modular protection devices and terminal equipment. Such enclosures are commonly specified for commercial building sub-distribution boards where space is at a premium. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wall built-in (EF007536): No
  • Height (EF000040): 400 mm
  • Degree of protection (IP) (EF005474): IP55
  • Number of doors (EF000122): 1
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Number of locks (EF000123): 2
  • Pitched roof (EF009278): No
  • RAL-number (EF000116): 7035
  • With mounting plate (EF000118): No
  • With ventilation door (EF006279): No
  • With glazed door (EF001089): Yes
  • With rear door (EF007381): No
  • EMC-version (EF001062): No
  • Mounting plate depth-adjustable (EF006054): No
  • Impact strength (EF004293): IK08

More info

▲

Product features

Boxes for equip - Height: 515 mm - Height to caps cubrebornas: 400 mm - outer Width: 655 mm - useful Width: 515 mm - depth: 215 mm - Distance cover cubrebornas/door: 48

General characteristics

XL3 400 - distribution boxes-IP 55 - IP 55 - IK 08 - Envelope-metal monoblock - Includes door blind reversible equipped with a grip of ram interchangeable (to be ordered separately) and locking legs mural: - Capacity: 24 modules per row - Chassis-removable - fire Resistance according to IEC 60695-2-11: 750 °C to be installed in the ERP - RAL 7035 - Suitable for devices up to 250 A - For external industrial and urban sheltered
