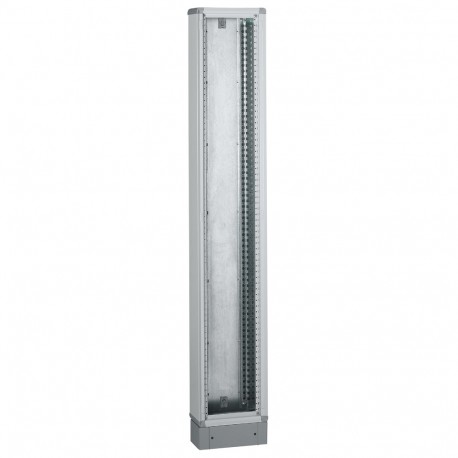

LEGRAND 020139 020139 LEGRAND XL3 400 CELL SIDE 1900H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020139 LEGRAND XL3 400 CELL SIDE 1900H

020139

020139

LEGRAND

1 Pcs.

XL3 400 CELL SIDE 1900H Cell side XL3 400 - for metal cabinet ref. 201 19 - Alt 1900 - grey RAL 7035 Side cell XL³ 400 - Height 1900 - Gray RAL 7035

Automation > Enclosure/switchgear cabinet (empty)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to expand modular switchboard assemblies, the Legrand XL3 400 cell side provides structural partitioning and housing for internal electrical equipment. Side extension cells are commonly employed in commercial switchgear line-ups to organize multi-column setups and manage cabling infrastructure safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wall built-in (EF007536): No
  • Height (EF000040): 1900 mm
  • Degree of protection (IP) (EF005474): IP43
  • Number of doors (EF000122): 1
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Number of locks (EF000123): 1
  • Pitched roof (EF009278): No
  • RAL-number (EF000116): 7035
  • With mounting plate (EF000118): No
  • With ventilation door (EF006279): No
  • With glazed door (EF001089): No
  • With rear door (EF007381): No
  • EMC-version (EF001062): No
  • Mounting plate depth-adjustable (EF006054): No
  • Impact strength (EF004293): IK08

More info

▲

Product features

Metal cabinets - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door Cells external side - Include plinth height 100 mm - total Height: 1900 mm - Height to caps cubrebornas: 1750 mm - total Width: 310 mm - working Width: 250 mm - depth: 175 mm

General characteristics

XL3 400 - boxes and control cabinets - Suitable for devices up to 400 A - fire Resistance according to IEC 60695-2-11: 750 °C - Capacity: 24 modules per row. RAL 7035 (socket RAL 7004) - The door must be ordered separately - Supplied with studs, functional set in the bottom of the wardrobe, plate cable entry cut-out and accessories link (horizontal and vertical) - For information on resistance in specific environments, see the statement
