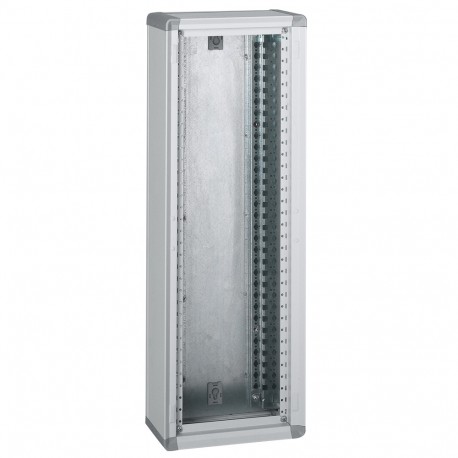

LEGRAND 020125 020125 LEGRAND XL3 400 CELL SIDE 900H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020125 LEGRAND XL3 400 CELL SIDE 900H

020125

020125

LEGRAND

1 Pcs.

XL3 400 CELL SIDE 900H Cell side XL3 400 - for metal box ref. 201 05 - Alt. 900 - grey RAL 7035 XL³ 400 H900 Side Cell - Grey RAL 7035

Automation > Enclosure/switchgear cabinet (empty)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020125 LEGRAND XL3 400 CELL SIDE 900H is a Legrand modular enclosure side panel designed to enclose and structure XL3 400 electrical distribution boards and control panels. Side panels complete the external housing of modular distribution boards, ensuring structural integrity and protection against environmental elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for wall built-in (EF007536): No
  • Height (EF000040): 900 mm
  • Degree of protection (IP) (EF005474): IP43
  • Number of doors (EF000122): 1
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Number of locks (EF000123): 1
  • Pitched roof (EF009278): No
  • RAL-number (EF000116): 7035
  • With mounting plate (EF000118): No
  • With ventilation door (EF006279): No
  • With glazed door (EF001089): No
  • With rear door (EF007381): No
  • EMC-version (EF001062): No
  • Mounting plate depth-adjustable (EF006054): No
  • Impact strength (EF004293): IK08

More info

▲

Product features

Metal boxes - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door Cells external side - total Height: 900 mm - Height to caps cubrebornas: 850 mm - total Width: 310 mm - working Width: 250 mm - depth: 175 mm

General characteristics

XL3 400 - boxes and control cabinets - Suitable for devices up to 400 A - fire Resistance according to IEC 60695-2-11: 750 °C - Capacity: 24 modules per row. RAL 7035 (socket RAL 7004) - The door must be ordered separately - Supplied with studs, functional set in the bottom of the wardrobe, plate cable entry cut-out and accessories link (horizontal and vertical) - For information on resistance in specific environments, see the statement
