View larger
Images are for illustrative purposes only. Please refer to data sheet for details

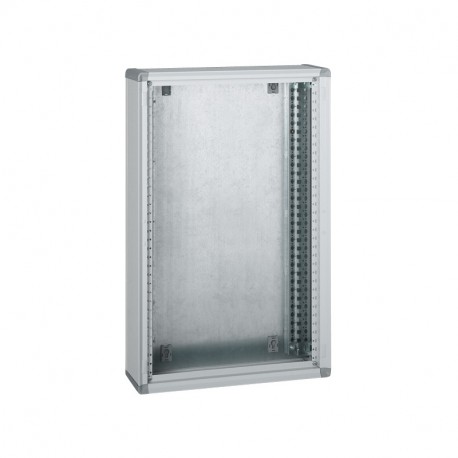

020108 LEGRAND XL3 400 METAL CASE. 1500/1450H
020108
020108
LEGRAND
1 Pcs.
XL3 400 METAL CASE. 1500/1450H
Box of distribution XL3 400 - metal - Alt. 1500 - gray RAL 7035
XL³ 400 distribution box - metal H1500mm - Grey RAL 7035
Automation > Enclosure/switchgear cabinet (empty)
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Metal boxes - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door For equip - total Height: 1500 mm - Height to caps cubrebornas: 1450 mm - overall Width: 575 mm - useful Width: 515 mm - depth: 175 mmGeneral characteristics
XL3 400 - boxes and control cabinets - Suitable for devices up to 400 A - fire Resistance according to IEC 60695-2-11: 750 °C - Capacity: 24 modules per row. RAL 7035 (socket RAL 7004) - The door must be ordered separately - Supplied with studs, functional set in the bottom of the wardrobe, plate cable entry cut-out and accessories link (horizontal and vertical) - For information on resistance in specific environments, see the statement| Feature Name | Feature Value |
|---|---|
| Suitable for wall built-in (EF007536) | No |
| Height (EF000040) | 1500 mm |
| Degree of protection (IP) (EF005474) | IP43 |
| Number of doors (EF000122) | 1 |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Material quality (EF001257) | Other |
| Number of locks (EF000123) | 1 |
| Pitched roof (EF009278) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| RAL-number (EF000116) | 7035 |
| With mounting plate (EF000118) | No |
| With ventilation door (EF006279) | No |
| With glazed door (EF001089) | Yes |
| With rear door (EF007381) | No |
| EMC-version (EF001062) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Impact strength (EF004293) | IK08 |
| Pole fastening (EF009582) | No |
| Depth (EF000049) | 175 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 575 mm |
