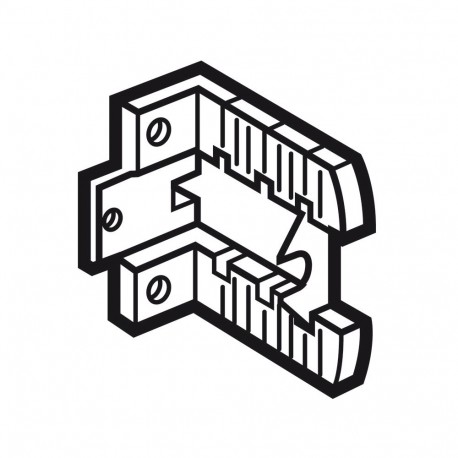

LEGRAND 020090 020090 LEGRAND INSULATING BASE UNIVERSAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020090 LEGRAND INSULATING BASE UNIVERSAL

020090

020090

LEGRAND

1 Pcs.

INSULATING BASE UNIVERSAL Mounting bracket insulation (2) XL3 400/800 Insulating fixing bracket (2) XL³ 400/800

Automation > Mounting accessories (switchgear cabinet)
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Insulating base universal acts as a dielectric mounting foundation used in electrical switchgear to isolate live busbars and conductive components safely from grounded metal panels. It prevents electrical tracking and provides secure mechanical anchorage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Mounting bracket

More info

▲

Product features

Accessories mounting Bracket insulator - set of 2 brackets - mounts directly to studs functional boxes and cabinets XL3 400/800 - Allows for connection to isolated ground with copper bar 12 x 4 mm (ref. 0 373 49) or flat bar 12 x 2 mm (ref. 0 048 19) and motor terminal block IP 2X - Also supports profiles universal ref. 0 202 04, 0 206 05/54

General characteristics

XL3 400 - accessories and caps cubrebornas

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
