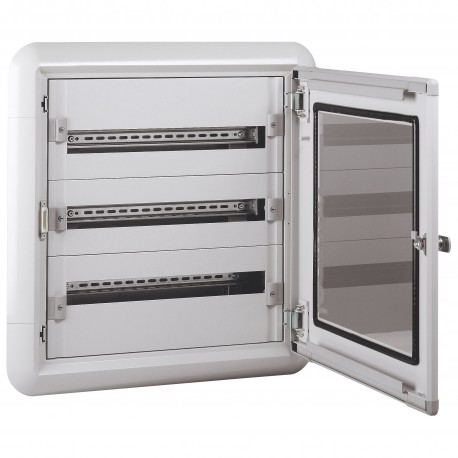

LEGRAND 020013 020013 LEGRAND XL3 160 FLUSH-MOUNTED METAL 3 ROWS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020013 LEGRAND XL3 160 FLUSH-MOUNTED METAL 3 ROWS

020013

020013

LEGRAND

1 Pcs.

XL3 160 FLUSH-MOUNTED METAL 3 ROWS Box distribution recessed XL3 160 - fully modular - 3 rows - 24 mód. Recessed distribution box XL³ 160 - modular - 3 rows - 24mod

Automation > Small distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020013 LEGRAND XL3 160 FLUSH-MOUNTED METAL 3 ROWS is a flush-mounted metal distribution enclosure engineered to securely organize multi-row modular electrical switchgear and protection units. Steel distribution enclosures provide rugged structural integrity for commercial electrical layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 600 mm
  • Inner depth (EF001131): 93 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP43
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Steel
  • With lock (EF006306): No
  • Mounting method (EF000003): Flush mounted
  • Number of rows (EF000266): 3
  • Cover model (EF009212): With notch
  • RAL-number (EF000116): 7035
  • Built-in depth (EF000218): 140 mm
  • Type of covering (EF000339): Optional
  • With mounting plate (EF000118): No
  • Extension possible (EF001088): No
  • Width in number of modular spacings (EF002950): 24

More info

▲

Product features

Distribution box modular recessed - Number of rows: 3 - Number of modules: 72 - Height front: 695 mm - front Width: 670 mm - bed Height: 640 mm - Width box: 617 mm

General characteristics

XL3 160 - 24 modules per row - distribution boxes flush-mounted "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - recessed box metal - chassis removable profiles mounted - brass bar for drivers protection fitted: 36 holes 1.5 to 10 mm2, 2 holes 35 mm2 - frame bezel and plate insulators - Fund of recess: 100 mm min. - Capacity: 24 modules per row - RAL 7035 - doors are flat, must be ordered separately - Suitable for DPX3 160 - IP 40 - IK 08 with door IP 30 - IK 04 without door
