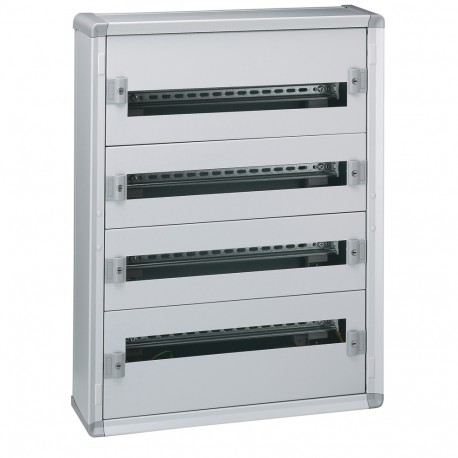

LEGRAND 020004 020004 LEGRAND XL3 160 SUPERF METAL 4 ROWS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020004 LEGRAND XL3 160 SUPERF METAL 4 ROWS

020004

020004

LEGRAND

1 Pcs.

XL3 160 SUPERF METAL 4 ROWS Box, distribution metal XL3 160 - fully modular - 4 rows of 24 modules XL³ 160 metal distribution box - fully modular - 4 rows of 24mod

Automation > Small distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built with a sturdy metal housing, the Legrand 020004 LEGRAND XL3 160 SUPERF METAL 4 ROWS surface-mounted enclosure safely contains modular electrical control gear. Industrial panel builders depend on multi-row surface enclosures to organize protective devices and ensure safe wiring practices in operational plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 750 mm
  • Inner depth (EF001131): 115 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP43
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Steel
  • With lock (EF006306): No
  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 4
  • Cover model (EF009212): With notch
  • RAL-number (EF000116): 7035
  • Built-in depth (EF000218): 170 mm
  • Type of covering (EF000339): Optional
  • With mounting plate (EF000118): No
  • Extension possible (EF001088): Yes
  • Width in number of modular spacings (EF002950): 24

More info

▲

Product features

Distribution box modular metal surface - Suitable for DPX3 160 - Apparatus modular Vistop less than or equal to 125 In - Number of rows: 4 - Number of modules: 96 - Height: 750 mm Width: 575 mm Depth: 147 mm

General characteristics

XL3 160 - distribution boxes metal "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - Chassis removable with profiles that are symmetrical mounted - brass Bar for drivers protection fitted: 36 holes 1.5 to 10 mm2 and 2 holes 35 mm2 - Capacity: 24 modules per row - RAL 7035 - Supplied complete with profiles and caps cubrebornas - doors must be ordered separately - Allow you to perform sets certified according to UNE en 61439-2 and -3 - IP 43 - IK 08 with seal and door, IP 40 - IK 08 with door IP 30 - IK 07 without door - Sides, removable side. Top and bottom removable and separable to insert the plate cable entry cut-out (order separately)
