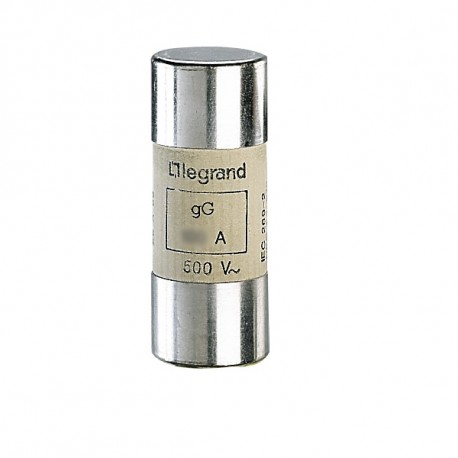

015397 LEGRAND FUSE CYLINDRICAL /2/125
015397
015397
LEGRAND
10 Pcs.
FUSE CYLINDRICAL /2/125
Legrand 125A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm
Cylindrical fuse cartridge - gG - 22x58mm - without firing pin - 125A
Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
| Model | Ceramic fuse |
|---|---|
| Size | 22x58 mm |
| Rated current | 125 A |
| Depth | 58 mm |
| Width | 22 mm |
| Voltage type | AC/DC |
| Utilization category according to IEC 60269 | GG |
|---|---|
| Rated operating frequency | 42-62 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 11.3 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC/DC |
| Size (EF000088) | 22x58 mm |
| Power loss at rated current (EF012389) | 11.3 W |
| Rated current (EF000227) | 125 A |
