015396 LEGRAND FUSE CYLINDRICAL /2/100

015396

015396

LEGRAND

10 Pcs.

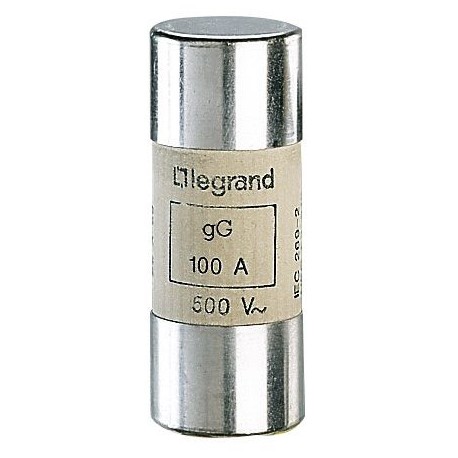

FUSE CYLINDRICAL /2/100 Legrand 100A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm Cylindrical fuse cartridge - gG - 22x58mm - without firing pin - 100A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand cylindrical fuse link is utilized within industrial distribution boards and control panels to safeguard electrical wiring and connected machinery against excessive current draws. Its ceramic body provides reliable thermal and mechanical stability under standard operating loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 22x58 mm
  • Power loss at rated current (EF012389): 8.3 W
  • Rated current (EF000227): 100 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size22x58 mm
Rated current100 A
Depth58 mm
Width22 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current8.3 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
