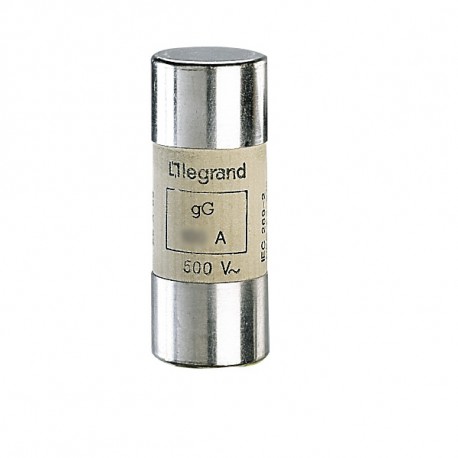

LEGRAND 015363 015363 LEGRAND FUSE CYLINDRICAL /2/63 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

015363 LEGRAND FUSE CYLINDRICAL /2/63

015363

015363

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /2/63 Legrand 63A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm Cylindrical fuse cartridge - gG - 22x58mm - without firing pin - 63A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Legrand, the 015363 is a cylindrical fuse designed for general cable and equipment protection in commercial and industrial electrical panels. Cable protection fuses are universally applied to safeguard branch circuits, distribution lines, and connected machinery against thermal overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 22x58 mm
  • Power loss at rated current (EF012389): 6.3 W
  • Rated current (EF000227): 63 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size22x58 mm
Rated current63 A
Depth58 mm
Width22 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current6.3 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
