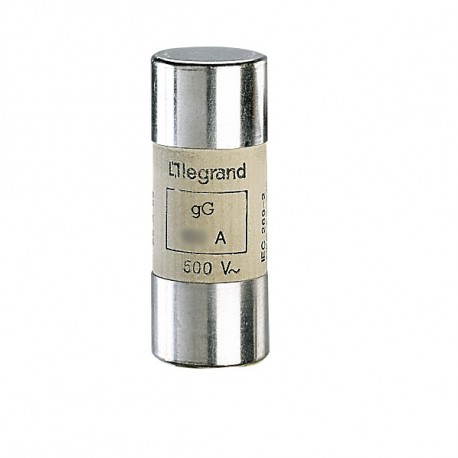

LEGRAND 015332 015332 LEGRAND FUSE CYLINDRICAL /2/32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

015332 LEGRAND FUSE CYLINDRICAL /2/32

015332

015332

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /2/32 Legrand 32A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm Cylindrical fuse cartridge - gG - 22x58mm - without firing pin - 32A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cylindrical fuse is an overcurrent protective device utilized in industrial electrical distribution systems to safeguard cables and connected equipment from fault currents. This Legrand 015332 unit acts as a reliable disconnect link when excessive thermal or electrical loads occur within a panel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 22x58 mm
  • Power loss at rated current (EF012389): 3.7 W
  • Rated current (EF000227): 32 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size22x58 mm
Rated current32 A
Depth58 mm
Width22 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current3.7 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
