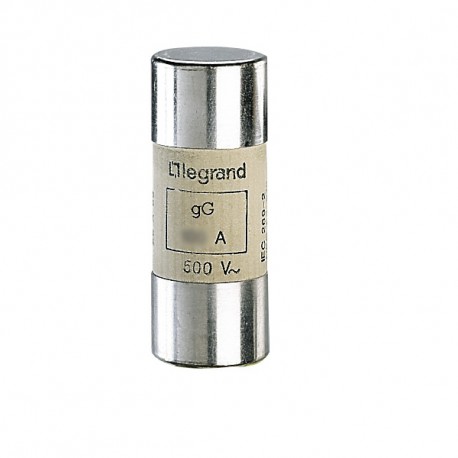

LEGRAND 015325 015325 LEGRAND FUSE CYLINDRICAL /2/25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

015325 LEGRAND FUSE CYLINDRICAL /2/25

015325

015325

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /2/25 Legrand 25A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm Cylindrical fuse cartridge - gG - 22x58mm - without firing pin - 25A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 015325 cylindrical fuse provides reliable cable and equipment protection in commercial and industrial electrical installations. Such fuses are routinely housed in disconnect switches to prevent thermal damage from sustained electrical overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 22x58 mm
  • Power loss at rated current (EF012389): 3.5 W
  • Rated current (EF000227): 25 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size22x58 mm
Rated current25 A
Depth58 mm
Width22 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current3.5 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
