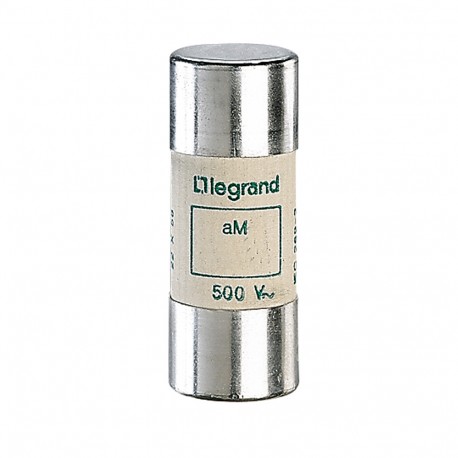

LEGRAND 015080 015080 LEGRAND FUSE CYLINDRICAL /2/80 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

015080 LEGRAND FUSE CYLINDRICAL /2/80

015080

015080

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /2/80 Legrand 80A Type aM HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm Cylindrical fuse cartridge - aM - 22x58mm - without firing pin - 80A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for industrial switchgear protection, the Legrand 015080 cylindrical fuse uses a durable ceramic housing to interrupt high-magnitude fault currents safely. Technicians incorporate these devices into motor control centers and distribution boards to isolate overcurrent conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 22x58 mm
  • Power loss at rated current (EF012389): 7.4 W
  • Rated current (EF000227): 80 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size22x58 mm
Rated current80 A
Depth58 mm
Width22 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current7.4 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
