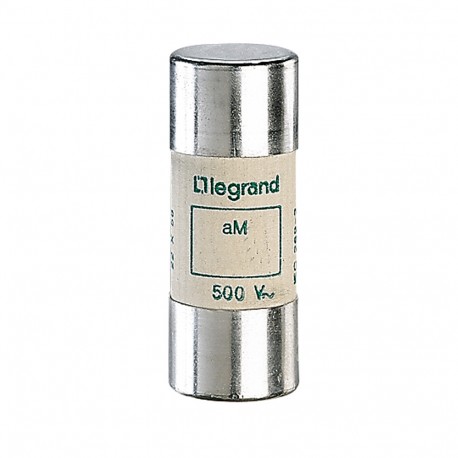

015032 LEGRAND FUSE CYLINDRICAL /2/32
015032
015032
LEGRAND
10 Pcs.
Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 015032 cylindrical fuse functions as a switchgear protection component within industrial power distribution and motor control infrastructure. These cylindrical fuses are frequently deployed in modular fuse disconnects to protect transformer loads and switching devices from short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Model (EF000010): Ceramic fuse
- Voltage type (EF000187): AC/DC
- Size (EF000088): 22x58 mm
- Power loss at rated current (EF012389): 3.7 W
- Rated current (EF000227): 32 A
More info
▲| Model | Ceramic fuse |
|---|---|
| Size | 22x58 mm |
| Rated current | 32 A |
| Depth | 58 mm |
| Width | 22 mm |
| Voltage type | AC/DC |
| Utilization category according to IEC 60269 | AM |
|---|---|
| Rated operating frequency | 42-62 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 3.7 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
