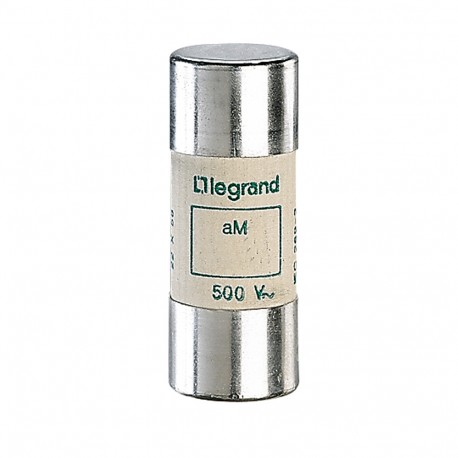

015025 LEGRAND FUSE CYLINDRICAL /2/25
015025
015025
LEGRAND
10 Pcs.
FUSE CYLINDRICAL /2/25
HRC cartridge fuse - cylindrical type aM 22 X 58 - 25 A - without indicator
Cylindrical fuse cartridge - aM - 22x58mm - without firing pin - 25A
Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)0.381
- Weight (g)512.00
Product characteristics
Cylindrical type aM (motor rated)- Conform to EN 60269-1, IEC 60269-1 and 2
- Without striker
- Rating : 25 Amps
- Voltage ~ : 500 Volts
- Rupture capacity : 100000 Amps
General characteristics
HRC cartridge fuses| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | aM (switchgear protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC/DC |
| Size (EF000088) | 22x58 mm |
| Power loss at rated current (EF012389) | 3.5 W |
| Rated current (EF000227) | 25 A |
