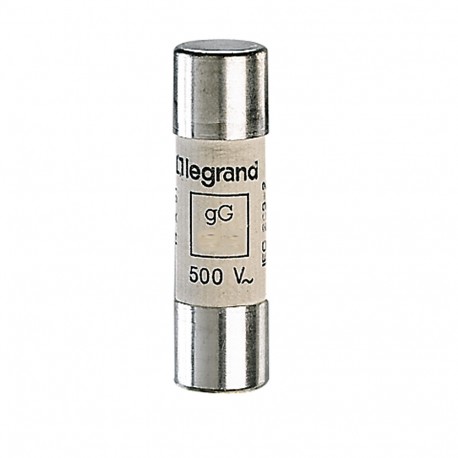

LEGRAND 014340 014340 LEGRAND FUSE CYLINDRICAL /1/40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

014340 LEGRAND FUSE CYLINDRICAL /1/40

014340

014340

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /1/40 Legrand 40A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 14mm x 51mm Cylindrical fuse cartridge - gG - 14x51mm - without firing pin - 40A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 014340 cylindrical fuse is a standard circuit protection device integrated into industrial distribution panels to prevent overloads and short circuits in alternating and direct current networks. Ceramic cylindrical fuses provide reliable breaking capacity in modular fuse holders. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 14x51 mm
  • Power loss at rated current (EF012389): 4 W
  • Rated current (EF000227): 40 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size14x51 mm
Rated current40 A
Depth51 mm
Width14 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current4 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
