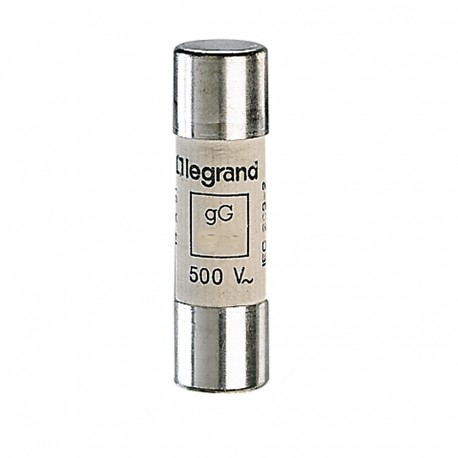

LEGRAND 014316 014316 LEGRAND FUSE CYLINDRICAL /1/16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

014316 LEGRAND FUSE CYLINDRICAL /1/16

014316

014316

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /1/16 Legrand 16A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 14mm x 51mm Cylindrical fuse cartridge - gG - 14x51mm - without firing pin - 16A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 014316 cylindrical fuse provides dependable cable and equipment protection in industrial control systems, disconnecting circuits automatically when current thresholds are exceeded. Ceramic industrial fuses are essential for safeguarding distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 14x51 mm
  • Power loss at rated current (EF012389): 2.35 W
  • Rated current (EF000227): 16 A

More info

▲
Type gG industrial HRC (high rupturing capacity) Conform to BS EN 60269-1 and 2 (BS 88) IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size14x51 mm
Rated current16 A
Depth51 mm
Width14 mm
Voltage typeAC/DC
Utilization category according to IEC 60269GG
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current2.35 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
