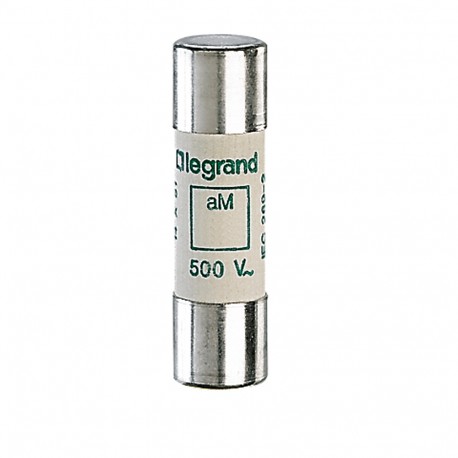

LEGRAND 014032 014032 LEGRAND FUSE CYLINDRICAL /1/32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

014032 LEGRAND FUSE CYLINDRICAL /1/32

014032

014032

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /1/32 Legrand 32A Type aM HRC Cylindrical Cartridge Fuse without Indicator 14mm x 51mm Cylindrical fuse cartridge - aM - 14x51mm - without firing pin - 32A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 014032 is a cylindrical fuse designed for switchgear protection applications within industrial electrical distribution panels. These switchgear-backing fuses are selected to protect motor starter combinations and associated switching devices from high short-circuit currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 14x51 mm
  • Power loss at rated current (EF012389): 3.6 W
  • Rated current (EF000227): 32 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size14x51 mm
Rated current32 A
Depth51 mm
Width14 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current3.6 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
