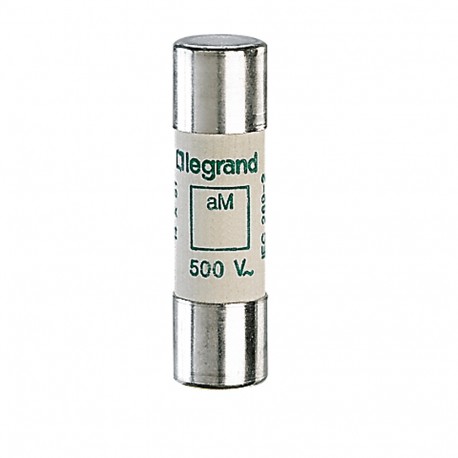

LEGRAND 014025 014025 LEGRAND FUSE CYLINDRICAL /1/25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

014025 LEGRAND FUSE CYLINDRICAL /1/25

014025

014025

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /1/25 Legrand 25A Type aM HRC Cylindrical Cartridge Fuse without Indicator 14mm x 51mm Cylindrical fuse cartridge - aM - 14x51mm - without firing pin - 25A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

014025 LEGRAND FUSE CYLINDRICAL /1/25 serves as an industrial cylindrical switchgear protection fuse link engineered for integration into fuse holders and modular disconnects. This component is typically deployed to protect motor control circuits and electrical switchgear against damaging overcurrent conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 14x51 mm
  • Power loss at rated current (EF012389): 3.1 W
  • Rated current (EF000227): 25 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size14x51 mm
Rated current25 A
Depth51 mm
Width14 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current3.1 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
