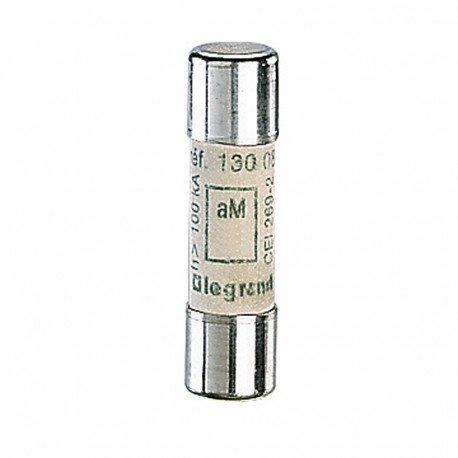

LEGRAND 013016 013016 LEGRAND FUSE CYLINDRICAL /0/16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

013016 LEGRAND FUSE CYLINDRICAL /0/16

013016

013016

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /0/16 Legrand 16A Type aM HRC Cylindrical Cartridge Fuse without Indicator 10mm x 38mm Cylindrical fuse cartridge - aM - 10x38mm - without indicator - 16A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cylindrical fuse is commonly integrated into industrial control panels to protect distribution lines and auxiliary electrical components from overcurrents. This Legrand 013016 model provides dependable breaking capacity within standard modular fuse holders. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 10x38 mm
  • Power loss at rated current (EF012389): 1.9 W
  • Rated current (EF000227): 16 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size10x38 mm
Rated current16 A
Depth38 mm
Width10 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current1.9 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
