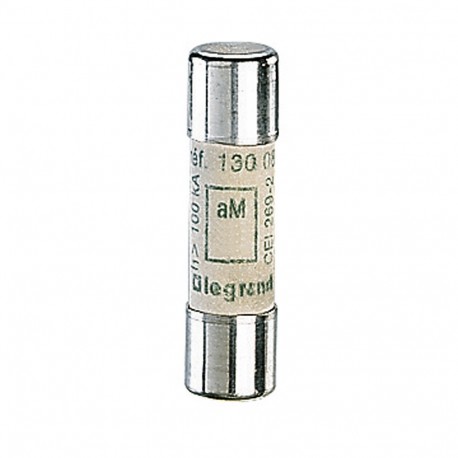

LEGRAND 013010 013010 LEGRAND FUSE CYLINDRICAL /0/10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

013010 LEGRAND FUSE CYLINDRICAL /0/10

013010

013010

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /0/10 Legrand 10A Type aM HRC Cylindrical Cartridge Fuse without Indicator 10mm x 38mm Cylindrical fuse cartridge - aM - 10x38mm - without indicator - 10A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 013010 is a cylindrical ceramic fuse link designed to protect motor control gear and auxiliary circuits from short-circuit events. Standard industrial enclosures rely on these small-format components to isolate faults safely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 10x38 mm
  • Power loss at rated current (EF012389): 1.3 W
  • Rated current (EF000227): 10 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size10x38 mm
Rated current10 A
Depth38 mm
Width10 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current1.3 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C

Product Datasheet
