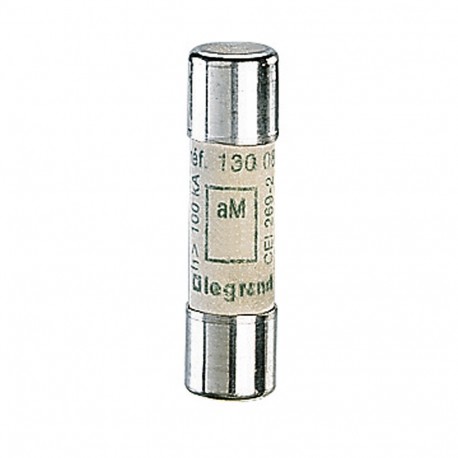

LEGRAND 013004 013004 LEGRAND FUSE CYLINDRICAL /0/4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

013004 LEGRAND FUSE CYLINDRICAL /0/4

013004

013004

LEGRAND

10 Pcs.

FUSE CYLINDRICAL /0/4 Legrand 4A Type aM HRC Cylindrical Cartridge Fuse without Indicator 10mm x 38mm Cylindrical fuse cartridge - aM - 10x38mm - without indicator - 4A

Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed specifically for switchgear protection, the Legrand 013004 cylindrical ceramic fuse-link handles high inrush currents associated with motor circuits while safely clearing sustained fault conditions. Motor control applications depend on these specialized fuses to prevent nuisance blowing during startup phases while ensuring robust safety margins.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC/DC
  • Size (EF000088): 10x38 mm
  • Power loss at rated current (EF012389): 0.85 W
  • Rated current (EF000227): 4 A

More info

▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
ModelCeramic fuse
Size10x38 mm
Rated current4 A
Depth38 mm
Width10 mm
Voltage typeAC/DC
Utilization category according to IEC 60269AM
Rated operating frequency42-62 Hz
Type of fuse status indicatorOther
Power loss at rated current0.85 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
