View larger
Images are for illustrative purposes only. Please refer to data sheet for details

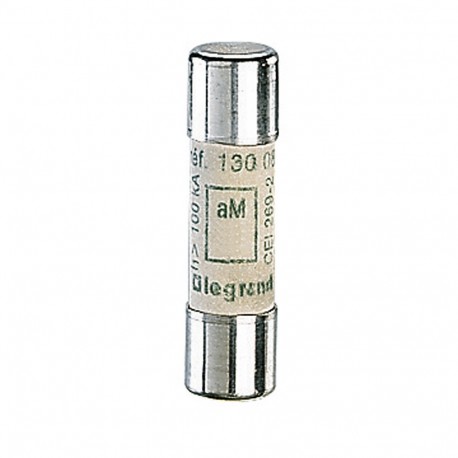

013002 LEGRAND FUSE CYLINDRICAL /0/2
013002
013002
LEGRAND
10 Pcs.
FUSE CYLINDRICAL /0/2
Legrand 2A Type aM HRC Cylindrical Cartridge Fuse without Indicator 10mm x 38mm
Cylindrical fuse cartridge - aM - 10x38mm - without indicator - 2A
Automation > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Cylindrical type aM (motor rated) HRC (high rupturing capacity) Conform to BS EN 60269-1 and IEC 60269-1, 2 and 2-1 Bureau Veritas approved
| Model | Ceramic fuse |
|---|---|
| Size | 10x38 mm |
| Rated current | 2 A |
| Depth | 38 mm |
| Width | 10 mm |
| Voltage type | AC/DC |
| Utilization category according to IEC 60269 | AM |
|---|---|
| Rated operating frequency | 42-62 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 0.5 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | aM (switchgear protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC/DC |
| Size (EF000088) | 10x38 mm |
| Power loss at rated current (EF012389) | 0.5 W |
| Rated current (EF000227) | 2 A |
