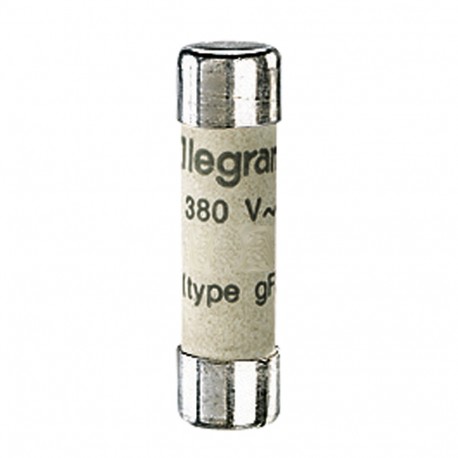

LEGRAND 012310 012310 LEGRAND FUSE CYLINDRICAL/00/10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

012310 LEGRAND FUSE CYLINDRICAL/00/10

012310

012310

LEGRAND

10 Pcs.

FUSE CYLINDRICAL/00/10 Legrand 10A Type gG Cylindrical Cartridge Fuse without Indicator 8mm x 32mm Cylindrical fuse type gG - 8x32mm - without melting indicator - 10A

Automation > Cylindrical fuse
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 012310 is a cylindrical fuse utilized for general cable and equipment protection within low-voltage electrical distribution networks. These miniature fuses are commonly integrated into control panels to protect auxiliary wiring, sensors, and lighting sub-circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Model (EF000010): Ceramic fuse
  • Voltage type (EF000187): AC
  • Size (EF000088): 8x32mm
  • Power loss at rated current (EF012389): 1.2 W
  • Rated current (EF000227): 10 A

More info

▲
Type gG Conform to BS EN 60269-1, IEC 60269-1 Bureau Veritas approved
ModelCeramic fuse
Size8x32 mm
Rated current10 A
Depth32 mm
Width8 mm
Voltage typeAC
Utilization category according to IEC 60269GG
Rated operating frequency50-60 Hz
Type of fuse status indicatorOther
Power loss at rated current1.2 W
Operating / setting temperature-25-40 °C
Storage temperature-40-70 °C
