View larger
Images are for illustrative purposes only. Please refer to data sheet for details

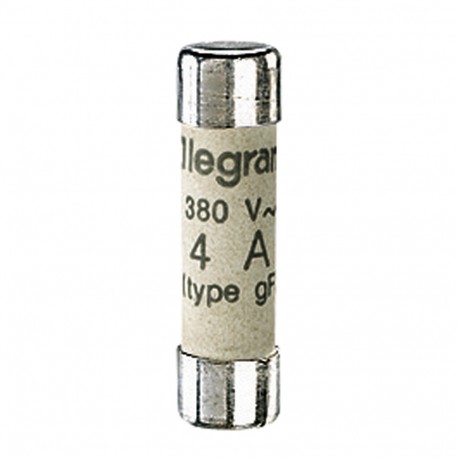

012304 LEGRAND FUSE CYLINDRICAL/00/4
012304
012304
LEGRAND
10 Pcs.
FUSE CYLINDRICAL/00/4
Legrand 4A Type gG Cylindrical Cartridge Fuse without Indicator 8mm x 32mm
Cylindrical fuse type gG - 8x32mm - without melting indicator - 4A
Automation > Cylindrical fuse
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type gG Conform to BS EN 60269-1, IEC 60269-1 Bureau Veritas approved
| Model | Ceramic fuse |
|---|---|
| Size | 8x32 mm |
| Rated current | 4 A |
| Depth | 32 mm |
| Width | 8 mm |
| Voltage type | AC |
| Utilization category according to IEC 60269 | GG |
|---|---|
| Rated operating frequency | 50-60 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 0.6 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC |
| Size (EF000088) | 8x32mm |
| Power loss at rated current (EF012389) | 0.6 W |
| Rated current (EF000227) | 4 A |
