View larger
Images are for illustrative purposes only. Please refer to data sheet for details

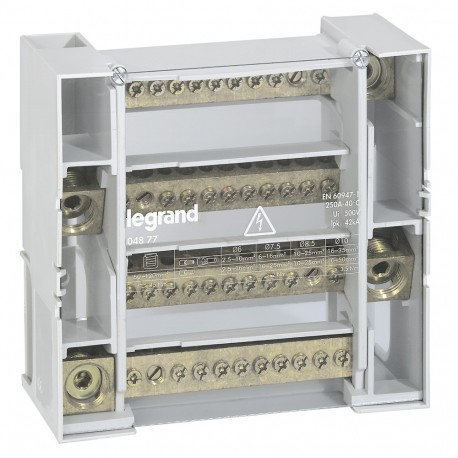

004877 LEGRAND REP. MOD TETRA 250 MONOBLOCK
004877
004877
LEGRAND
1 Pcs.
REP. MOD TETRA 250 MONOBLOCK
Monobloc modular distribution block - 4P - 250 A - 12 connections
Monobloc modular distributor - 4P - 250A - 12 connections - 9mod
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)2.601
- Weight (g)1 502.00
Product characteristics
Monobloc modular distribution blocks- Mounting on rail or on plate with 2 screws
- Supplied with insulated back plate and transparent protective front cover
- Each bar can be labelled using CAB 3
- Possible to add IP 2X terminal block
- Equipped with 4 bars
- Rating : 250 A
- Isc peak : 42 kA
- Icw : 14.4 kA
- Number of modules : 9
General characteristics
Modular distribution blocks 40 to 250 A- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 150 mm |
| Nominal current (EF000001) | 250 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Contact safe (EF004521) | Yes |
| Number of poles (EF001391) | 4 |
| Depth (EF000049) | 44 mm |
| Width (EF000008) | 160 mm |
