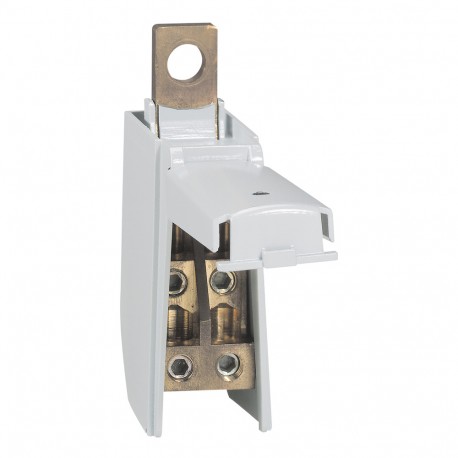

004868 LEGRAND TERMINAL BLOCK DISTRIBUTOR 250A
004868
004868
LEGRAND
1 Pcs.
TERMINAL BLOCK DISTRIBUTOR 250A
Distribution terminal - 250 A - 6 ouputs flexible : 4 x 35 mm² 2 x 25 mm²
Terminal block for 250A header terminal block
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.22
- Weight (g)163.00
Product characteristics
Distribution terminals- 250 A - 4 outputs 35 mm² flexible and 2 outputs
- 25 mm² flexible - Isc peak 36 kÂ
- Can be fitted directly onto downstream terminal of DPX-IS 250
General characteristics
Modular distribution blocks 40 to 250 A- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
| Feature Name | Feature Value |
|---|---|
| Nominal current (EF000001) | 250 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 25 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Conductor cross section, input (EF016330) | 70 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 6 |
