View larger
Images are for illustrative purposes only. Please refer to data sheet for details

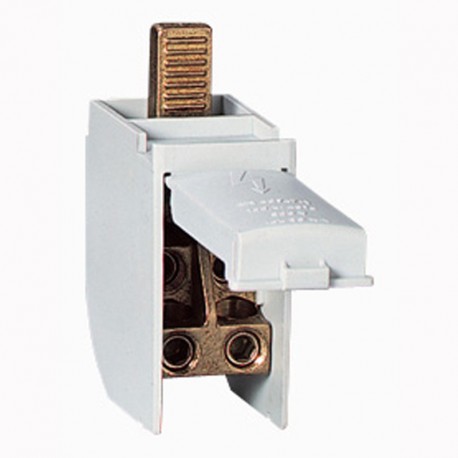

004867 LEGRAND TERMINAL BLOCK DISTRIBUTOR 160A
004867
004867
LEGRAND
1 Pcs.
TERMINAL BLOCK DISTRIBUTOR 160A
Distribution terminal - 160 A - 6 ouputs 25 mm² flexible
Terminal block for output terminal of the header device 160A
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.162
- Weight (g)105.00
Product characteristics
Distribution terminals- 160 A - 6 outputs 25 mm² flexible - Isc peak 30 kÂ
- Can be fitted directly onto downstream terminal of Vistop 100/160 A
General characteristics
Modular distribution blocks 40 to 250 A- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
| Feature Name | Feature Value |
|---|---|
| Nominal current (EF000001) | 160 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output AWG (EF016333) | 4 |
| Conductor cross section, output (EF016331) | 25 mm² |
| Conductor cross section, input AWG (EF016332) | 1 |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Conductor cross section, input (EF016330) | 50 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 6 |
