View larger
Images are for illustrative purposes only. Please refer to data sheet for details

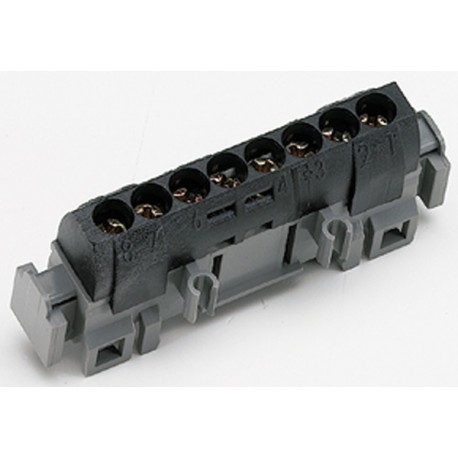

004852 LEGRAND TERMINAL REPART. 8P IP2 PHASE
004852
004852
LEGRAND
10 Pcs.
TERMINAL REPART. 8P IP2 PHASE
Legrand Fully Shrouded IP2X Phase Terminal Block Rail Mounting 0 Entry 8 Exit 75mm Black
IP2X distribution terminal - phase - 8 connection. from 1.5 to 16mm² - Black - L. 75mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Fully shrouded terminal blocks providing finger protection IP2x For fixing to 12 x 2mm rail Can be fixed directly to DIN rail without accessory
| Number of poles | 1 |
|---|---|
| Nominal current | 76 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Number of inputs | 1 |
| Number of outputs | 7 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 1.5-16 mm² |
|---|---|
| Conductor cross section, output | 1.5-16 mm² |
| Contact safe | Yes |
| Height | 30 mm |
| Width | 75 mm |
| Depth | 16 mm |
| Degree of protection (IP) | IP2X |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Phase |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Nominal current (EF000001) | 76 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 1.5 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 16 mm |
| Conductor cross section, input (EF016330) | 1.5 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 75 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 7 |
| Number of inputs (EF000318) | 1 |
