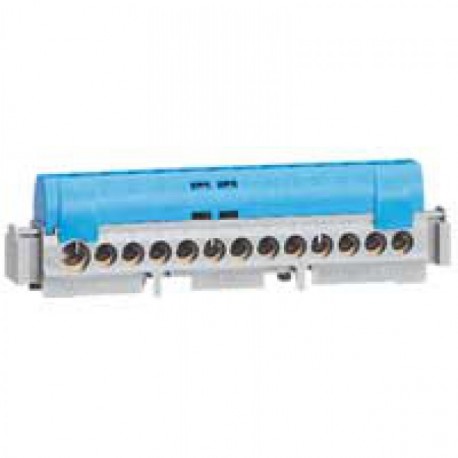

004844 LEGRAND TERMINAL REPART. 13P IP2 NEUTRAL
004844
004844
LEGRAND
10 Pcs.
TERMINAL REPART. 13P IP2 NEUTRAL
Legrand Fully Shrouded IP2X Neutral Terminal Block Rail Mounting 1 Entry 12 Exit 113mm Blue
IP2X distribution terminal - neutral - 1 connection. from 6 to 25mm² - Blue - L. 113mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand neutral terminal block facilitates structured neutral conductor connection and organization on DIN rails within electrical switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 30 mm
- Nominal current: 90 A
- Connection type: Screwing
- Mounting method: DIN rail
- Contact safe: Yes
- Suitable for extra fine-strand conductors: No
- Number of poles: 1
- Conductor cross section, output: 1.5 mm²
- Suitable for stranded conductors: Yes
- Depth: 16 mm
- Conductor cross section, input: 6 mm²
- Suitable for fine strand conductors: Yes
- Width: 113 mm
- Suitable for solid conductors: Yes
- Number of outputs: 12
- Number of inputs: 1
More info
▲
Fully shrouded terminal blocks providing finger protection IP2x For fixing to 12 x 2mm rail Can be fixed directly to DIN rail without accessory
| Number of poles | 1 |
|---|---|
| Nominal current | 90 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Number of inputs | 1 |
| Number of outputs | 12 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 6-25 mm² |
| Conductor cross section, output | 1.5-16 mm² |
| Contact safe | Yes |
|---|---|
| Height | 30 mm |
| Width | 113 mm |
| Depth | 16 mm |
| number of rows | 1 |
| degree of impact strength (IK) | IK00 |
| Degree of protection (IP) | IP2X |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Nominal voltage | 230-400 V |
| Halogen free | No |
| Type of distribution blocks | Neutral |
| Terminals capacity | 1.5-25 mm² |
| Label space/information surface | No |
